Instanced Grass onto a gltf Model at Certain Elevation

The original jsfiddle came from here. This is a fiddle with grass on a simple plane..

This then got me thinking how can this be adapted to work with any model and have the grass appear on the top of it.

Here is a codesandbox with the code in for you to play around with (the grass lays ontop of the gltf model):

This is the main javascript file:

1import React, { useEffect, useRef, useMemo } from "react";
2import * as THREE from "three";
3
4import { OrbitControls } from "three/examples/jsm/controls/OrbitControls";
5import { MeshSurfaceSampler } from "three/examples/jsm/math/MeshSurfaceSampler";
6
7import { extend, useFrame, useThree, useLoader } from "@react-three/fiber";
8import { useGLTF } from "@react-three/drei";
9import textureMap from "../grass_blade.jpeg";
10
11extend({ OrbitControls, MeshSurfaceSampler });
12
13let simpleNoise = `
14float N (vec2 st) { // https://thebookofshaders.com/10/
15        return fract( sin( dot( st.xy, vec2(12.9898,78.233 ) ) ) *  43758.5453123);
16}
17
18float smoothNoise( vec2 ip ){ // https://www.youtube.com/watch?v=zXsWftRdsvU
19    vec2 lv = fract( ip );
20    vec2 id = floor( ip );
21
22    lv = lv * lv * ( 3. - 2. * lv );
23
24    float bl = N( id );
25    float br = N( id + vec2( 1, 0 ));
26    float b = mix( bl, br, lv.x );
27
28    float tl = N( id + vec2( 0, 1 ));
29    float tr = N( id + vec2( 1, 1 ));
30    float t = mix( tl, tr, lv.x );
31
32    return mix( b, t, lv.y );
33}
34`;
35
36const vertexShader = `
37varying vec2 vUv;
38uniform float time;
39
40${simpleNoise}
41
42void main() {
43
44    vUv = uv;
45    float t = time * 2.;
46
47    // VERTEX POSITION
48
49    vec4 mvPosition = vec4( position, 1.0 );
50    #ifdef USE_INSTANCING
51        mvPosition = instanceMatrix * mvPosition;
52    #endif
53
54    // DISPLACEMENT
55
56    float noise = smoothNoise(mvPosition.xz * 0.5 + vec2(0., t));
57    noise = pow(noise * 0.5 + 0.5, 2.) * 2.;
58
59    // here the displacement is made stronger on the blades tips.
60    float dispPower = 1. - cos( uv.y * 3.1416 * 0.15 );
61
62    float displacement = noise * ( 0.3 * dispPower );
63    mvPosition.z += displacement * noise;
64
65
66    vec4 modelViewPosition = modelViewMatrix * mvPosition;
67    gl_Position = projectionMatrix * modelViewPosition;
68
69}
70`;
71
72const fragmentShader = `
73varying vec2 vUv;
74uniform sampler2D textureMap;
75
76void main() {
77
78    float alpha = texture2D(textureMap, vUv).r;
79    //If transparent, don't draw
80    if (alpha < 0.15) discard;
81
82    vec3 baseColor = vec3( 0.5, 0.0, 0.0 );
83    float clarity = ( vUv.y * 0.875 ) + 0.125;
84    gl_FragColor = vec4( baseColor * clarity, 1 );
85}
86`;
87
88const Terrain = () => {
89  const { nodes, materials } = useGLTF("/scene_1.gltf");
90  const {
91    scene,
92    camera,
93    gl: { domElement },
94  } = useThree();
95
96  const terrainRef = useRef(null);
97
98  const [texture] = useLoader(THREE.TextureLoader, [textureMap]);
99
100  const uniforms = {
101    time: {
102      value: 0,
103    },
104    textureMap: {
105      value: texture,
106    },
107  };
108
109  const grassMaterial = useMemo(
110    () =>
111      new THREE.ShaderMaterial({
112        vertexShader,
113        fragmentShader,
114        uniforms,
115        side: THREE.DoubleSide,
116      }),
117    []
118  );
119
120  const options = { bladeWidth: 0.012, bladeHeight: 0.11, joints: 5 };
121
122  const baseGeom = useMemo(
123    () =>
124      new THREE.PlaneBufferGeometry(
125        options.bladeWidth,
126        options.bladeHeight,
127        1,
128        options.joints
129      ).translate(0, options.bladeHeight / 2, 0),
130    [options]
131  );
132
133  useEffect(() => {
134    const instanceNumber = 30000;
135    const dummy = new THREE.Object3D();
136    var geometry = baseGeom;
137
138    const instancedMesh = new THREE.InstancedMesh(
139      geometry,
140      grassMaterial,
141      instanceNumber
142    );
143
144    instancedMesh.scale.x = 5.5;
145    instancedMesh.scale.y = 5.5;
146    instancedMesh.scale.z = 5.5;
147
148    if (terrainRef?.current) {
149      const sampler = new MeshSurfaceSampler(terrainRef?.current).build();
150      for (let i = 0; i < instanceNumber; i++) {
151        const tempPosition = new THREE.Vector3();
152        sampler.sample(tempPosition);
153
154        dummy.position.set(tempPosition.x, tempPosition.y, tempPosition.z);
155
156        dummy.updateMatrix();
157        if (tempPosition.y >= 0.0) {
158          instancedMesh.setMatrixAt(i, dummy.matrix);
159        }
160      }
161    }
162
163    scene.add(instancedMesh);
164  }, [scene, grassMaterial]);
165
166  useFrame(({ clock }) => {
167    grassMaterial.uniforms.time.value = clock.getElapsedTime();
168    grassMaterial.uniformsNeedUpdate = true;
169    grassMaterial.uniforms.textureMap.value = texture;
170  });
171  return (
172    <>
173      <orbitControls args={[camera, domElement]} />
174      <group dispose={null}>
175        <mesh
176          ref={terrainRef}
177          geometry={nodes.Icosphere.geometry}
178          position={[0, 0, 0]}
179          scale={5.5}
180        >
181          <meshPhysicalMaterial color={"black"} />
182        </mesh>
183      </group>
184      <directionalLight color={"white"} intensity={1.3} />
185    </>
186  );
187};
188
189export default Terrain;

There are 2 bits which I did modifications to the original jsfiddle:

sampling the mesh and adding a Y modifier
use a alpha image to get shape of blade of grass

Sampling:

1useEffect(() => {
2  const instanceNumber = 30000;
3  const dummy = new THREE.Object3D();
4  var geometry = baseGeom;
5
6  const instancedMesh = new THREE.InstancedMesh(
7    geometry,
8    grassMaterial,
9    instanceNumber
10  );
11
12  instancedMesh.scale.x = 5.5;
13  instancedMesh.scale.y = 5.5;
14  instancedMesh.scale.z = 5.5;
15
16  if (terrainRef?.current) {
17    const sampler = new MeshSurfaceSampler(terrainRef?.current).build();
18    for (let i = 0; i < instanceNumber; i++) {
19      const tempPosition = new THREE.Vector3();
20      sampler.sample(tempPosition);
21
22      dummy.position.set(tempPosition.x, tempPosition.y, tempPosition.z);
23
24      dummy.updateMatrix();
25      if (tempPosition.y >= 0.0) {
26        instancedMesh.setMatrixAt(i, dummy.matrix);
27      }
28    }
29  }
30
31  scene.add(instancedMesh);
32}, [scene, grassMaterial]);

This is the part where we sample the terrain. With the sampled position we only store positions for instancing if the y coordinate is above 0.0.

There are a couple of key points in the code.

Firstly we have to set the scale of the instanced mesh and this is dependent of what gltfjsx spits out, i.e. the scale below:

1<group dispose={null}>
2  <mesh
3    ref={terrainRef}
4    geometry={nodes.Icosphere.geometry}
5    position={[0, 0, 0]}
6    scale={5.5}
7  >
8    <meshPhysicalMaterial color={"black"} />
9  </mesh>
10</group>

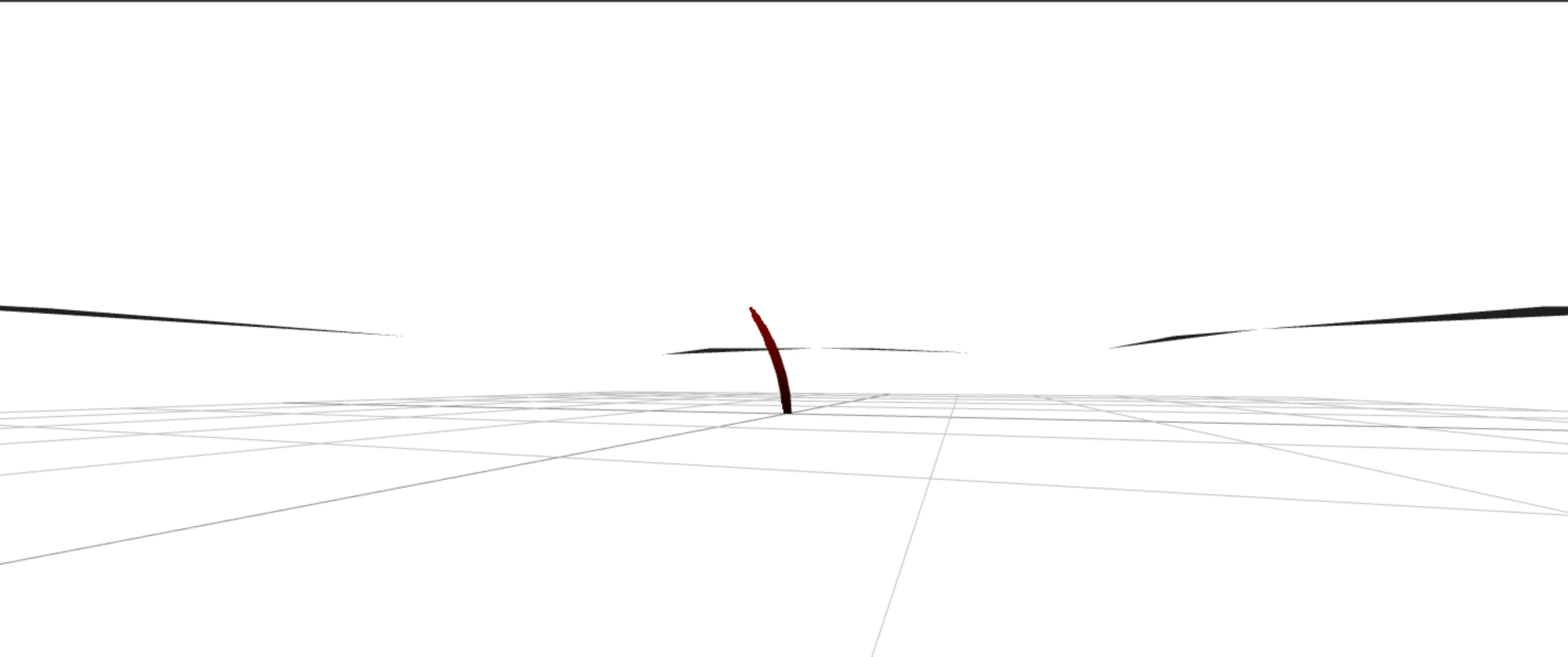

Seciondly we have to update the matrix of the dummy vector, if we dont do this then you will get something like this:

This is because we are making changes to positions and scale we have to update the matrix:

1dummy.updateMatrix();

Alpha image for blade shape:

1const fragmentShader = `
2    varying vec2 vUv;
3    uniform sampler2D textureMap;
4
5    void main() {
6
7        float alpha = texture2D(textureMap, vUv).r;
8
9        // If transparent, don't draw
10        // and discard
11        if (alpha < 0.15) discard;
12
13        //.....
14    }
15`;
16//.....
17
18const [texture] = useLoader(THREE.TextureLoader, [textureMap]);
19
20//.....
21
22useFrame(({ clock }) => {
23  //.....
24  grassMaterial.uniforms.textureMap.value = texture;
25});

The key to this is the discard key word in glsl, which essential means we dont process this fragment if the is present in the fragment shader, the result being to cut the parts of the image which have a alpha of < 0.15, ending in a blade of grass shape.

Final Thoughts:

This was a very quick and simple implementation as i modified an existing jsfidle.

The beautify of this is because we are sampling a mesh and only storing positions above a certain Y coordinate even if there are bumps in the mesh above Y = 0.0 then this will get the origin position for the blade of grass over the bumps.

Also you could carve up a large mesh to be smaller sections which have this grass.

Also as a side point you could use noise to have a gradient of grass or to create clumps of grass for a more natural effect.

Noise is your friend! 😁

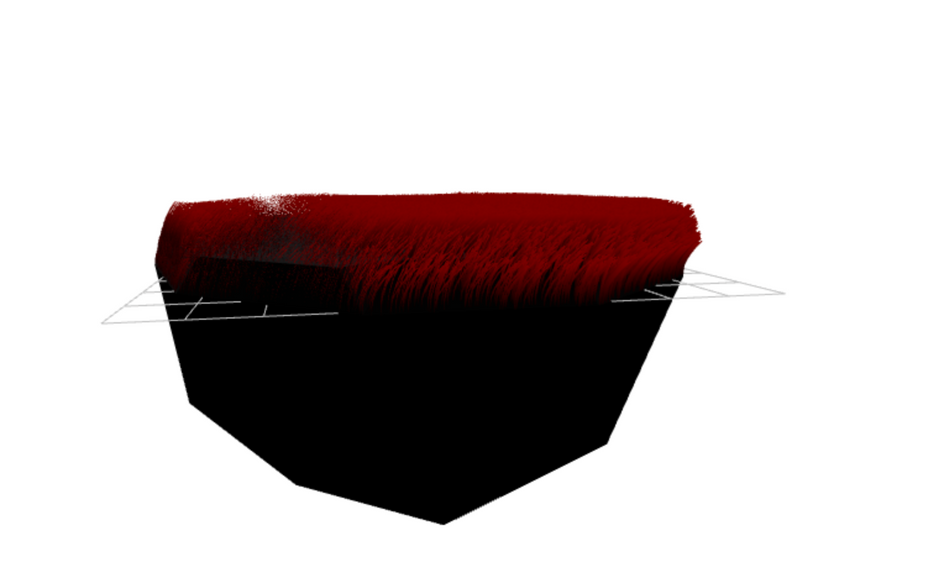

Heres a video of the end results:

Until next time 😎
